Thunderbolt® NTP Time Server TS200 (IPv4 & IPv6)

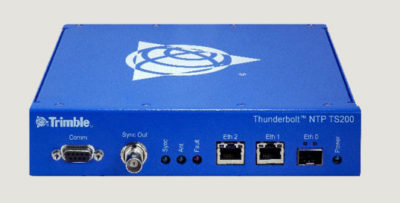

The Thunderbolt NTP Time Server Clock TS200 is a NTP Time Server providing very accurate NTP time reference.

TS200 Front Panel ElementsTS200 Back Panel Elements

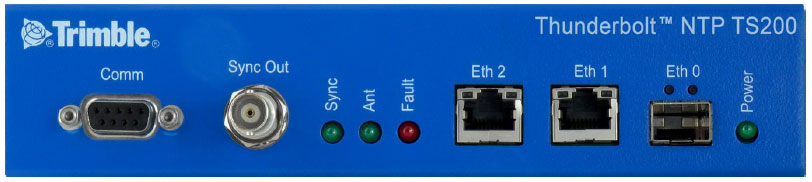

TS200 (Front Panel Elements)

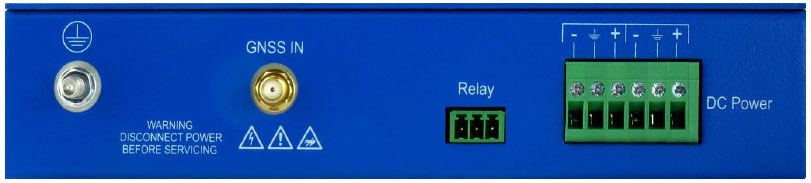

TS200 (Back Panel Elements)

KEY FEATURES

  • NTP v4 Time Server
  • Supports 2.5K transaction/second
  • Multi-Constellation (GPS, GLONASS, Beidou and Galileo)
  • 15ns time accuracy relative (GPS locked)
  • Holdover of ±1.5us over 4 hours (constant temperature and when locked to GPS for 7 days)
  • PPS and 10MHz outputs
  • IPv4 and IPv6 Support
  • Dedicated management port (1 x RJ45)
  • Network Management: SNMP, Web UI, CLI
  • Operating temperature range –40 to +85°C
  • DC Power (dual feed) and AC power options
  • Small foot print – ½ Rack 1U
Product Overview

NTP Network Time Server for high reliability applications

The Trimble Thunderbolt® NTP TS200 Time Server is designed for demanding applications that require high accuracy NTP time stamping. The TS200 supports synchronization of thousands of workstations, routers, switches and other network elements for logging and security forensics. VOIP IPBX systems also require very accurate NTP
timestamps to ensure CDR events are correctly registered and reported.
The Thunderbolt NTP TS200 supports multiple constellations GNSS, which enables tracking of GPS, GLONASS, GALILEO and Beidou satellites enhancing redundancy and satellite availability.

It provides NTP time and PPS outputs. Thunderbolt® NTP TS200 can furthermore use its built-in, disciplined OCXO (oven controlled crystal oscillator) as autonomous time base for providing several hours of accurate holdover in case that GNSS signals are not available.
Hardware redundancy can be achieved by using two Thunderbolt® NTP Time Servers.
Thunderbolt® NTP comes in a rack-mountable enclosure; two Thunderbolt® NTP units fit side-by-side in a 1U height 19” rack.

Industrial applications
Automation systems and industrial environments that use SCADA or other network monitoring, measurement and control systems require high precision NTP reference to ensure reliable and accurate operations.
The NTP TS200 is optimized to deliver extremely stable and accurate time of day (TOD) synchronization for a variety of time sensitive applications such as datacenters, SCADA systems and PMU synchronization.

Ideal for demanding environments
The Thunderbolt NTP TS200 leverages Trimble’s decades of experience in GNSS systems with millions of timing devices integrated into telecommunications, digital broadcasting, computer networks and other industrial applications.
The NTP TS200 Time Server offers extended operating temperature ranges to ensure suitability for use in demanding environments.
The NTP TS200 supports a large number of clients making it suitable for medium and large scale deployment. The low cost per client of the TS200 helps reduce the total cost of deployment while maintaining superior reliability.

Integration and Installation

The Trimble Thunderbolt NTP TS200 Clock offers AC and DC power options for easy deployment in all types of
network environments.
Matching the NTP TS200 with Trimble rugged antennas such as the Trimble Bullet™ 360 provides reliable reference acquisition in challenging RF signal environments.
Bullet 360 rugged antennas provide multi-GNSS capabilities so that critical applications can obtain high precision
timing signals with the best reliability in the industry.

BENEFITS

  • Extended environmental capabilities allow for installation in difficult industrial environments where other NTP servers cannot be deployed
  • Dual power input provides power redundancy
  • Superior holdover performance via Trimble proprietary algorithm gives extra time error budget for network design and dimensioning.
  • Low cost helps reduce total cost of NTP deployment
  • Small form factor allows for easy installation
  • Side by side capabilities facilitate redundancy implementation

SPECIFICATIONS

General

Inputs……………………….GNSS (GPS, GLONASS, Galileo & Beidou)
Outputs…………………..NTP, PPS, 10MHz

Ethernet Ports……………. 1x Mgmt RJ45, 1x 1G SFP, 1x 1G RJ45
1 x EIA-232 (RS-232) Serial Port
1 x BNC interface (PPS / 10Mhz outputs)
Terminal block to connect dual DC power inputs
GNSS Antenna …………SMA
Protocols: NTP, SNTP, IPv4, IPv6, Telnet, SFTP, SSH, RADIUS, TACACS+, SNMP, DAYTIME, TIME
Network Management…SNMPv2, HTTPS, CLI
User Interfaces:
CLI………………………Monitoring and Management
Web UI………………….Monitoring and Management

Performance

Time of day accuracy……………………………..15ns (1-sigma) from UTC
Frequency accuracy………………………………1.16×10-12 (one day ave.)
Holdover…………………………………………….<1×10-10 /24hrs
Time accuracy
Tracking to PRC………………………………………<15ns (locked)
Holdover………..……………………………………..< ±1.5μs/4hrs (7 days locked)
NTPv4 Stratum-1 server configuration………..2500 tps
Surveyed accuracy…………………………………..<3m Horizontal, <5m Vertical

Physical Characteristics

Dimensions in cm (L x W x H): 20.8 x 20 x 4.4 (19” half-rack x 1U)
Weight: < 3Kg (6 lb)

Operating Conditions:
Temperature -40°C to + 85°C
Humidity 5%-95% RH non-condensing (+60°C)

REGULATORY & STANDARDS

Safety & Environmental
UL / CSA 60950-1
EN: 60950-1, 300019
CE, CISPR22 class A
GR-63; Level 3
ETSI (EN55022/EN55024) EN 300019, Class T3.2
Electrical
EMC, ESD Immunity & susceptibility
FCC Part 15 Class A / ICES 003 Class-B
EN 301 489-1, EN 301 489-19, EN 303 413
IEEE 1613-1
Telcordia GR-1089
Synchronization
IETF NTPv4 (v3 compatible)
Environmental
RED,RoHS2 & WEEE Compliant

Specifications are subject to change without notice.


Need PTP Grandmaster Clock? Use THUNDERBOLT® PTP GRANDMASTER CLOCK GM200.
